GK-Bridge
The 3rd OCAJI Project Award in 2024

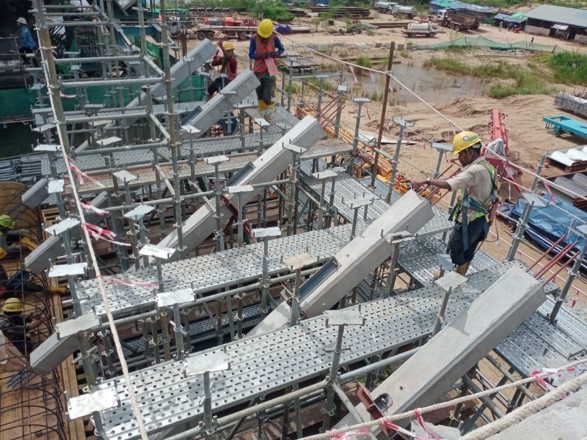

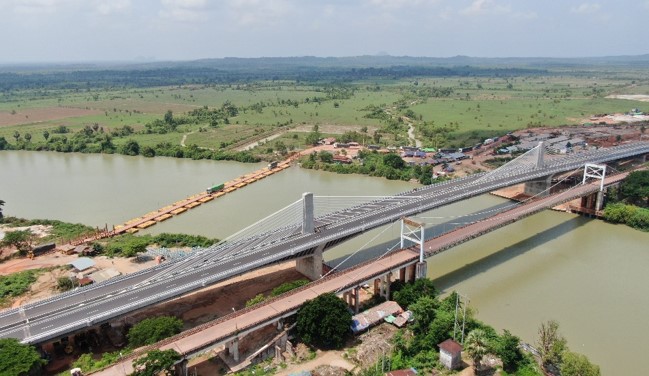

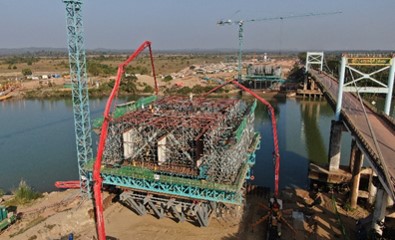

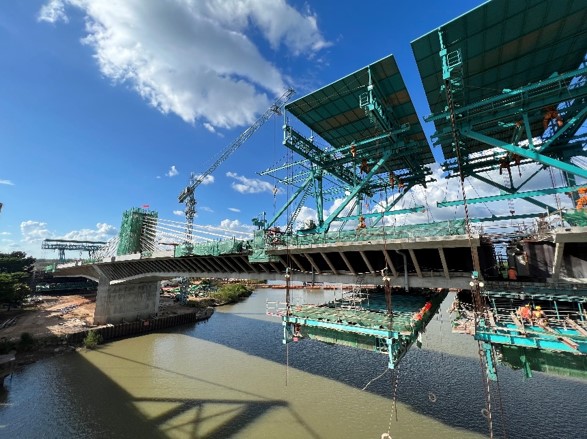

The Gyaing Kawkareik Bridge is a 580.0-meter-long bridge located in the Republic of the Union of Myanmar. The main bridge section consists of a PC 3-Span Continuous corrugated steel plate web extradosed bridge with a maximum span length of 180 meters. The technical features include the use of weather-resistant steel plates for the corrugated steel plate web, a parallel single-deck stay-cable extradosed bridge, and a new structural form combining inner and outer struts.
| Project Site | Kawkareik Township, Karen State, Republic of the Union of Myanmar |
|---|---|
| Completion Year | 2023 |
| Client | Department of Bridges, Ministry of Construction, Republic of the Union of Myanmar |
| Specifications | Bridge Length ：580.0m Span Length ：2@49.150m + 99.200m + 180.000m + 99.200m + 2@49.150m Effective width：22.190m |
| Bridge Type | Main Bridge: 3-Span Continuous PC Corrugated Steel Plate Web Extradosed Bridge (with Inner・Outer Strut) Approach Bridge: Steel 2 Span Continuous Small Number Girder Bridge （Pre Cast PC Slab Combined） |
